COMBICLICK fibre discs CONTOUR

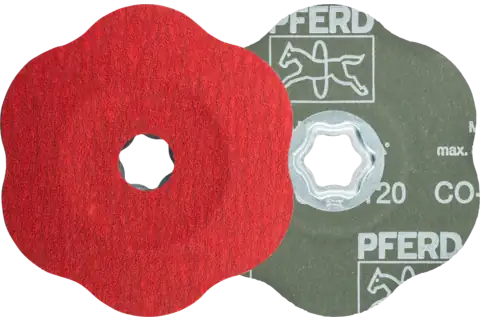

COMBICLICK® CONTOUR Fiber Disc, 5″ Dia, 120 Grit, Ceramic oxide CO-COOL

EDP:: 40802

COMBICLICK® CONTOUR Fiber Disc, 5″ Dia, 120 Grit, Ceramic oxide CO-COOL 2

COMBICLICK® CONTOUR Fiber Disc, 5″ Dia, 120 Grit, Ceramic oxide CO-COOL 3

COMBICLICK® CONTOUR Fiber Disc, 5″ Dia, 120 Grit, Ceramic oxide CO-COOL 4

COMBICLICK® CONTOUR Fiber Disc, 5″ Dia, 120 Grit, Ceramic oxide CO-COOL 5

COMBICLICK® CONTOUR Fiber Disc, 5″ Dia, 120 Grit, Ceramic oxide CO-COOL 6

Technical data Change variant

Find a distributor

Choose options

Abrasive

Ceramic oxide grain CO-COOL-CONTOUR

Dia. external

5 Inch

Grit size

60 CONTOUR 80 CONTOUR 120 CONTOUR

Packaging unit

Reset Filter

Matching accessories & spare parts

Backing pad CC-GT 115-125 5/8

Backing pad CC-H-GT 115-125 5/8

Backing pad CC-GT 125 5/8"

Backing pad CC-H-GT 125 5/8"

Technical information

COMBICLICK® CONTOUR Fiber Disc, 5″ Dia, 120 Grit, Ceramic oxide CO-COOL

Item number Global part number: 64112512
Abrasive: Ceramic oxide grain CO-COOL-CONTOUR
Dia. external: 5 Inch
EDP no.: 40802
Grit size: 120 CONTOUR
Max. RPM: 12200 RPM
Packaging unit: 25 pieces

Description

The COMBICLICK® system consists of a specially developed backing pad and a rugged mounting system at the back of the disc. The backing pad allows COMBICLICK® discs to be used on most available angle grinders. The special geometry of the cooling slots ensures high air throughput, which considerably reduces the thermal load on the abrasive material and the workpiece. The quick-mounting system, rugged fixture, secure attachment of the disc and optimized cooling system help to provide up to 30% lower workpiece temperature, up to 25% increased stock removal, up to 30% longer disc life and improved utilization of the abrasive.

"PFERD TOOLS fibre discs are manufactured in accordance with ISO 16057 in shape A1 version F under the designation ""vulcanized fibre disc""."

Very flexible and adaptable due to scalloped-edge outer contour shape. Helps prevent cutting into the workpiece. Active grinding additives in the coating substantially improve the stock removal rate, prevent loading, and result in cooler grinding.

Special features

Innovative quick-mounting system guarantees convenient handling and cool grinding
High productivity due to long service life and very high stock removal rate.
Consistent surface finish resulting from high-quality abrasives.
Extremely quick and easy disc changes reduce process costs.
With COMBICLICK®, scratches caused by protruding clamping parts are prevented and very high utilization of the available abrasive is attained.

Recommendations for use

Use COMBICLICK® fibre discs with COMBICLICK® backing pads on commercially available angle grinders.
Use the appropriate grinding oil for the material to significantly increase the service life and the abrasive performance of the discs.
Use the CC-GT backing pad with M14 or 5/8" thread to maintain flexibility at the edge of the fibre discs.

Ordering notes

Please order COMBICLICK® backing pads separately.

Safety notes

The maximum permitted peripheral speed is 15,800 SFPM.
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Workpiece materials: Annealed cast iron; Bronze; Cobalt-based alloys; Grey/nodular cast iron (GG/GJL, GGG/GJS); Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Titanium

Applications: Deburring; Leveling; Step-by-step fine grinding; Surface work; Working on edges; Work on weld seams

Compatible power tools: Angle grinder; Cordless angle grinder; Drive spindle

Downloads

brochure-combiclick-2021-web-en-usa-ca.pdf
