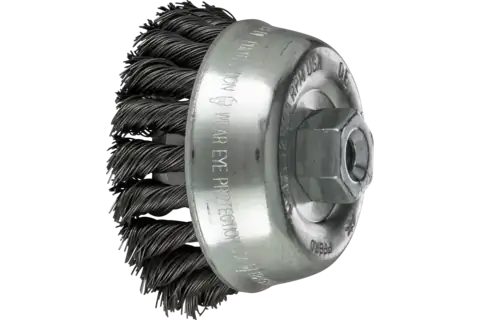

Knot Wire Cup Brush 3-1/2″ Dia. .020 Carbon Steel 3/8-24″ Thread

Technical information

Knot Wire Cup Brush 3-1/2″ Dia. .020 Carbon Steel 3/8-24″ Thread

Item number Global part number: 79182236
Dia. external: 3-1/2 Inch
Dia. filament material: .020 Inch
Dia. thread: 3/8-24
EDP no.: 82236
Filament material: Steel wire (ST)
Max. RPM: 12500 RPM
Mounting system: Thread
Number, knots: 20 pcs.
Packaging: Industrial packaging
RPM, optimum: 6000 - 12500 RPM
Trim length: 7/8 Inch
Packaging unit: 1 piece

Description

The brush knots are knotted to 75% of the length.

The brush is designed for brushing large areas and for heavy-duty brushwork, such as deburring, cleaning, derusting and descaling, as well as removing spatter.

Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD TOOLS special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire is temperature-resistant up to 600°F.

Advantages

Optimal ratio of aggressiveness and flexibility.
Long service life through use of PFERD TOOLS special wire.

Recommendations for use

Please observe the recommended rotational speeds.
For best performance, use on powerful angle grinders.

Workpiece materials: Cast iron; Cast steel; Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 370 HV (< 38 HRC)

Applications: Cleaning; Deburring; Derusting; Descaling; Paint stripping; Removing oxide layers; Root seam processing; Work on fillet welds; Work on weld seams

Compatible power tools: Angle grinder

Downloads

Cup brushes knotted, standard twist, standard flag with thread

Knot Wire Cup Brush 3-1/2″ Dia. .020 Carbon Steel 3/8-24″ Thread
