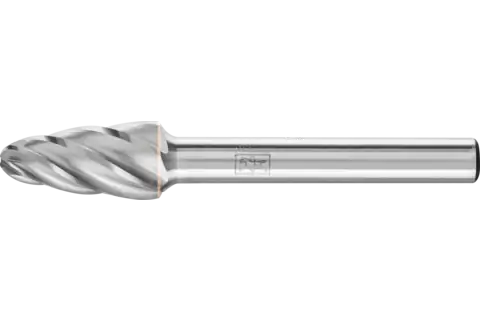

  • Carbide Bur SF-3 Tree Shape ALU Cut 3/8″ x 3/4″ x 1/4″ Shank

High-performance tungsten carbide burs, ALU/Non-Ferrous cut, Tree bur with radius end - Shape F

Carbide Bur SF-3 Tree Shape ALU Cut 3/8″ x 3/4″ x 1/4″ Shank

EDP:
24705
Carbide Bur SF-3 Tree Shape ALU Cut 3/8″ x 3/4″ x 1/4″ Shank 1
Carbide Bur SF-3 Tree Shape ALU Cut 3/8″ x 3/4″ x 1/4″ Shank 2
Carbide Bur SF-3 Tree Shape ALU Cut 3/8″ x 3/4″ x 1/4″ Shank 3
Carbide Bur SF-3 Tree Shape ALU Cut 3/8″ x 3/4″ x 1/4″ Shank 1
Carbide Bur SF-3 Tree Shape ALU Cut 3/8″ x 3/4″ x 1/4″ Shank 2
Carbide Bur SF-3 Tree Shape ALU Cut 3/8″ x 3/4″ x 1/4″ Shank 3
Technical data Change variant
Login / Register
Find a distributor
Choose options
Cut
Dia. external
Dia. shank
Length, cut
Overall length
Reset Filter
Technical information
Carbide Bur SF-3 Tree Shape ALU Cut 3/8″ x 3/4″ x 1/4″ Shank
Item number Global part number
21724705
Cut
ALU
Dia. external
3/8 Inch
Dia. shank
1/4 Inch
Dia. shank
6.35 mm
EDP no.
24705
Length, cut
3/4 Inch
Overall length
2-1/2 Inch
RPM, hard non-ferrous metals
19000 - 35000 RPM
RPM, soft non-ferrous metals
19000 - 35000 RPM
Radius corner design
0.098 Inch
SCTI-No.
SF-3
Packaging unit
1 piece
Description

PFERD TOOLS has developed the ALU cut specifically for stock removal on aluminum. This cut achieves a high stock removal rate.

Tree bur with radius end, shape F.
Advantages
  • Extremely high stock removal rate.
  • Creates large chips.
  • Reduced material adhesion.
  • Long service life and smooth running.
  • Can be used with peripheral speeds of up to 3,600 SFPM.
  • The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
Recommendations for use
  • Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
  • Observe the recommended rotational speed.
  • The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.
  • For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.
Workpiece materials
Aluminum
Brass
Bronze
Copper
Fibre-reinforced thermosetting plastics (GRP, CRP)
Hard aluminium alloys
Hard non-ferrous metal
Plastics
Soft aluminium alloys
Soft non-ferrous metal
Thermoplastics
Tough aluminium alloys
Zinc
Applications
Cutting out holes
Deburring
Leveling
Milling
Milling
Surface work
Work on weld seams
Compatible power tools
Automated centers
Flexible shaft drive
Straight grinder
Tool machine
