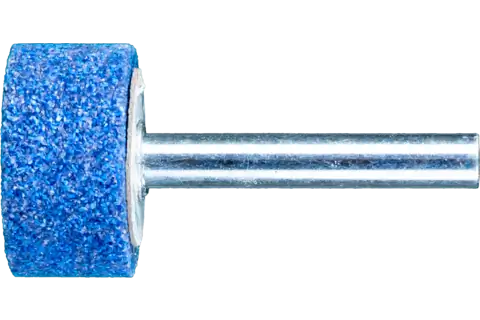

Vitrified Mounted Point, TOUGH, 1/2″ x 2, 46 Grit, W218, Ceramic Oxide,1/4″Shank

Technical information

Item number Global part number: 35478381
Dia. external: 1 Inch
Dia. shank: 1/4 Inch
Dia. shank: 6.35 mm
EDP no.: 30167
Grit size: 46
Length, shank: 1-1/2 Inch
PFERD TOOLS type: W 218 6,3 AW CO 46 J5V TOUGH
RPM max. 1 inch overhang: 32770 RPM
RPM max. 1-2 inch overhang: 38200 RPM
RPM optimum 1-2 inch overhang: 35000 RPM
Shape: W 218
Width: 1/2 Inch
Packaging unit: 10 pieces

Description

The TOUGH type is specifically designed for use on titanium materials, nickel-based and cobalt-based alloys, hardened steel components and built-up weld deposits.

Its applications include weld dressing on repair welds and reworking on turbine blades during aircraft maintenance and regrinding of repair welds in tool and die-making.

The cylindrical shape is ideal for grinding bores, radii and contours.

Special features

Cool grinding due to the easily broken-down grain mixture.
High stock removal rate results in increased productivity.
The self-sharpening properties of the ceramic oxide grain provide consistent stock removal rates throughout the life of the product.

Recommendations for use

TOUGH mounted points perform best at a peripheral speed of 6,000-9,800 SFPM.

Safety notes

The maximum permitted rotational speed relates to the unsupported shank length of 1/2".

Workpiece materials: Cobalt-based alloys; Hardened, heat-treated steels over 370 HV (38 HRC); High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Titanium; Titanium alloys

Applications: Deburring; Finishing; Grinding out; Grouting; Leveling; Surface work; Working on edges (chamfering, rounding); Work on weld seams

Compatible power tools: Flexible shaft drive; Straight grinder
