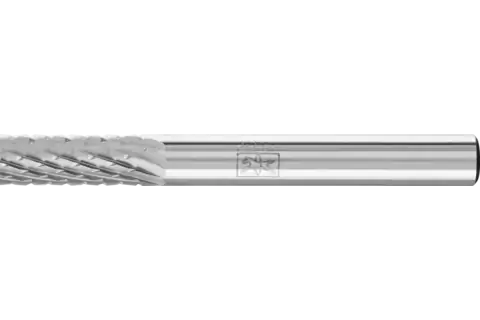

Carbide Bur SA-1 Cylindrical Uncut End Diamond Cut 1/4" x 5/8" x 1/4" Shank

Technical information

Item number Global part number: 21724033
Cut: Diamond
Dia. external: 1/4 Inch
Dia. shank: 1/4 Inch
EDP no.: 24033
Length, cut: 5/8 Inch
Overall length: 1-15/16 Inch
RPM, hardened, heat-treated steels over 370 HV (38 HRC): 13.000 - 19.000 RPM
RPM, harte NE-Metalle: 13.000 - 19.000 RPM
RPM, high-temperature-resistant materials: 13.000 - 24.000 RPM
RPM, rust and acid-resistant steels: 13.000 - 24.000 RPM
SCTI-No.: SA-1
Packaging unit: 1 piece

Description

Diamond cut burs are designed for machining stainless steel (INOX), steel, and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. They have high stock removal with short chips, and achieve a good surface finish.

Universal line burs are designed for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material.

Cylindrical bur

Advantages

Good stock removal rate due to high quality tungsten carbide, bur shape, cut, and optional coating.
Durable.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
High surface quality.

Recommendations for use

For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.

Workpiece materials: Bronze; Case-hardened steels; Cast steel; Cobalt-based alloys; Hard aluminium alloys; Hardened, heat-treated steels over 370 HV (38 HRC); Hard non-ferrous metal; High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel; Steel, cast steel; Steels over 220 HV (> 95 HB); Steels up to 220 HV (< 95 HB); Steels up to 370 HV (< 38 HRC); Titanium; Titanium alloys; Tool steels

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Compatible power tools: Flexible shaft drive; Robot; Stationary machines; Straight grinder; Tool machine
