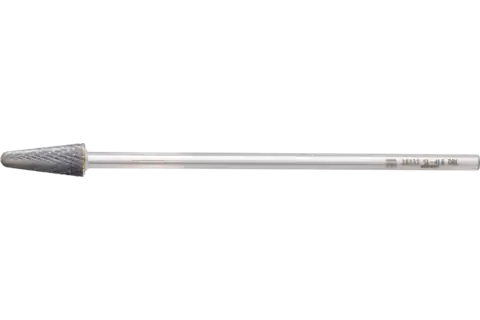

Carbide Bur SL-4L6 14° Taper Double Cut 1/2" x 1-1/8" x 1/4" Shank

Technical information

Item number Global part number: 21726232
Angle: 14 °
Cut: Double
Dia. external: 1/2 Inch
Dia. shank: 1/4 Inch
EDP no.: 26232
Length, cut: 1-1/8 Inch
Length, shank: 6 Inch
Overall length: 7-3/16 Inch
RPM, grey cast iron, white cast iron: 3.000 - 7.000 RPM
RPM, hardened, heat-treated steels over 370 HV (38 HRC): 3.000 - 7.000 RPM
RPM, high-temperature-resistant materials: 3.000 - 7.000 RPM
RPM, rust and acid-resistant steels: 3.000 - 7.000 RPM
RPM, steels up to 370 HV (38 HRC): 3.000 - 7.000 RPM
Radius corner design: 0.130 Inch
SCTI-No.: SL-4L6
Packaging unit: 1 piece

Description

Double cut burs are cross cut and ideal for machining cast iron, steel, stainless steel (INOX), nickel-based alloys, and titanium alloys. These burs have a high stock removal rate.

Universal line burs are designed for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material.

14° Taper bur with round radius end, shape L.

Advantages

Good stock removal rate due to high quality tungsten carbide, bur shape, cut, and optional coating.
Durable.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
High surface quality.

Recommendations for use

The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.

Safety notes

For safety reasons, the maximum application speeds with contact with the workpiece require a reduction in the recommended speed of tungsten carbide burs with standard shanks. Observe the reduced speeds outlined in the product details.
When working with longer shanks, it is crucial that the bur is in contact with the workpiece (or inserted in the hole or slot to be machined) before the power tool is turned on. As a rule, the bur must remain in contact with the workpiece for as long as the machine is running. Failure to observe this procedure may result in shank failure (bending) and hence an increased risk of accidents. If continuous contact between the tool and the workpiece is not guaranteed during use, the maximum idling speeds must not be exceeded.
Not designed for robotic or stationary applications due to risk of bending. Use only rigid clamping systems/power tools.

Workpiece materials: Annealed cast iron; Black annealed cast iron (GTS, GJMB); Brass; Bronze; Case-hardened steels; Cast iron; Cast steel; Cobalt-based alloys; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hard aluminium alloys; Hardened, heat-treated steels over 370 HV (38 HRC); High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel; Steel, cast steel; Steels over 220 HV (> 95 HB); Steels up to 220 HV (< 95 HB); Steels up to 370 HV (< 38 HRC); Tool steels; White annealed cast iron (GTW, GJMW)

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Compatible power tools: Automated centers; Flexible shaft drive; Straight grinder; Tool machine
