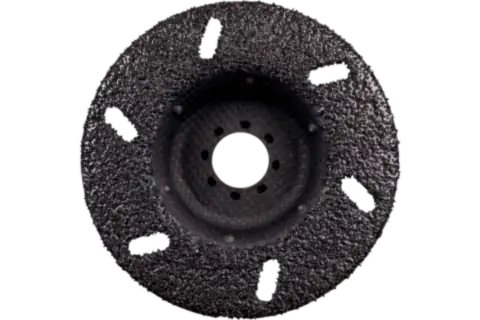

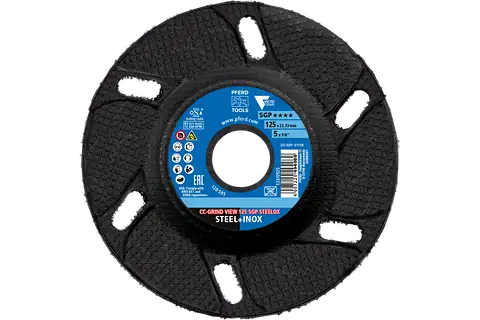

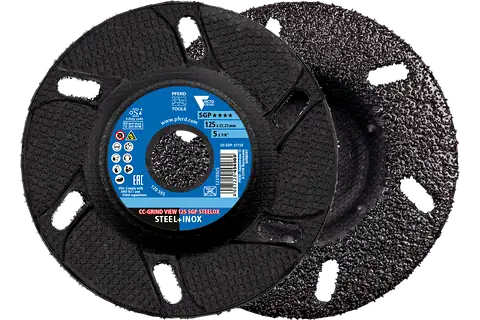

CC-GRIND VIEW with VICTOGRAIN abrasive grain

Grinding disc,CC-GRIND® VIEW, 5″ x 7/8, SGP STEELOX VICTOGRAIN®, Ceramic, 2 Pack

Grinding disc,CC-GRIND® VIEW, 5″ x 7/8, SGP STEELOX VICTOGRAIN®, Ceramic, 2 Pack 3

Technical data Change variant

Find a distributor

Choose options

Dia. external

5 Inch

Mounting system

center hole

Packaging

Industrial packaging Retail point-of-sale packaging

Reset Filter

Technical information

Grinding disc,CC-GRIND® VIEW, 5″ x 7/8, SGP STEELOX VICTOGRAIN®, Ceramic, 2 Pack

Item number Global part number: 64198127
Abrasive: VICTOGRAIN
Dia. external: 5 Inch
Dia. hole: 7/8 Inch
Max. RPM: 12200 RPM
Mounting system: center hole
Packaging: Retail point-of-sale packaging
Shape: CC-GRIND®-ROBUST
Packaging unit: 2 pieces

Description

Special Line SGP includes products engineered for specific tasks that offer the user key advantages over conventional products. This quality line also includes products that, due to their particularly high performance, offer ultimate economic efficiency.

The innovative CC-GRIND® VIEW grinding disc combines a unique design with VICTOGRAIN®, one of the most effective, precision-formed abrasives in the world. The viewing pane enables users to work precisely and monitor their work process. Designed for surface grinding, chamfering, deburring and work on weld seams.

Advantages

The viewing panes on the CC-GRIND VIEW provide a clear view of the grinding process for maximum control during grinding.
Users can easily maintain an optimal contact angle based on the sparking visible through the viewing pane.
Significantly more ergonomic than a grinding wheel: Noise, vibrations and dust are significantly reduced.
Fiberglass-reinforced plastic backing pad facilitates a robust, reliable application.
Ultimate aggressive performance for fast results.
In contrast to flap discs, they can achieve flat surfaces due to their dimensional stability.
In contrast to fibre discs, CC-GRIND VIEW does not deform, even under extreme climatic conditions, and is considerably more robust in heavy-duty use.

Recommendations for use

For optimum results, use with a flat contact angle.
Only use the face of the disc, not suitable for peripheral grinding (on edge).

Workpiece materials: Case-hardened steels; Stainless steel (INOX); Steel; Tool steels; Wood

Applications: Chamfering; Deburring; Leveling; Step-by-step fine grinding; Surface grinding; Work on weld seams

Compatible power tools: Angle grinder; Cordless angle grinder; Drive spindle
