Mounted points - cylindrical type RUBBER

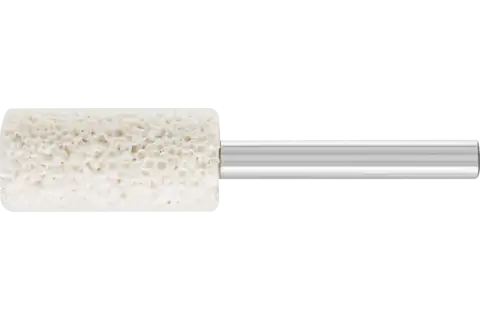

Vitrified Mounted Point, RUBBER, 1″x2, 30 Grit, W222, Aluminum Oxide, 1/4″ Shank

EDP:: 34213

Vitrified Mounted Point, RUBBER, 1″x2, 30 Grit, W222, Aluminum Oxide, 1/4″ Shank 2

Vitrified Mounted Point, RUBBER, 1″x2, 30 Grit, W222, Aluminum Oxide, 1/4″ Shank 3

Technical data

Find a distributor

Technical information

Vitrified Mounted Point, RUBBER, 1″x2, 30 Grit, W222, Aluminum Oxide, 1/4″ Shank

Item number Global part number: 35482352
Dia. external: 1 Inch
Dia. shank: 1/4 Inch
Dia. shank: 6.35 mm
EDP no.: 34213
Grit size: 30
Length, shank: 1-1/2 Inch
RPM max. 1 inch overhang: 12370 RPM
RPM max. 1-2 inch overhang: 15900 RPM
RPM optimum 1-2 inch overhang: 15900 RPM
Shape: W 222
Width: 2 Inch
Packaging unit: 10 pieces

Description

The RUBBER type is specifically designed for universal use on soft materials such as rubber, plastic, and wood.

Applications include removing burrs on plastic injection-molded parts, trimming rubber molded parts and polyurethane (PUR) molded parts, grinding wooden cores and wooden shapes in model construction workshops, and roughing various adhesive joints (e.g. for repairs on conveyor belts and tires).

The cylindrical shape is ideal for grinding radii and contours, and for deburring work.

Advantages

Open structure and large chip channels due to bubble grain aluminum oxide.
Machining of temperature-sensitive materials without the addition of coolant due to large chip channels.
Excellent grinding performance.

Recommendations for use

RUBBER mounted points perform best at a peripheral speed of 1,000-4,000 SFPM.

Safety notes

The maximum permitted rotational speed relates to the unsupported shank length of 1/2".

Workpiece materials: Elastomers; Thermoplastics; Wood

Applications: Deburring; Finishing; Grinding out; Grouting; Leveling; Roughening; Surface work; Working on edges (chamfering, rounding); Work on weld seams

Compatible power tools: Flexible shaft drive; Straight grinder
