Wheel brushes knotted, standard twist, standard flag pipeline cleaning, with hole

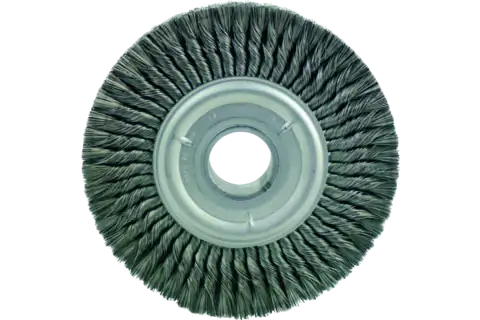

Pipe Conditioning Brush - Multisection 10" Dia. .020 CS 2" Keyed Arbor

EDP:: 82084

Pipe Conditioning Brush - Multisection 10" Dia. .020 CS 2" Keyed Arbor 2

Technical data

Distributors-Search

Technical information

Pipe Conditioning Brush - Multisection 10" Dia. .020 CS 2" Keyed Arbor

Item number Global part number: 79182084
Dia. external: 10 Inch
Dia. filament material: .020 Inch
Dia. hole: 2 Inch
EDP no.: 82084
Filament material: Steel wire (ST)
Installation width: 2 Inch
Max. RPM: 4800 RPM
Mounting system: center hole
Number, knots: 200 pcs.
Number, rows: 4
Packaging: Industrial packaging
RPM, optimum: 2.500 - 3.500 RPM
Trim length: 2-1/4 Inch
Width: 2-1/8 Inch
Packaging unit: 1 piece

Description

The brush knots are knotted to 75% of the length.

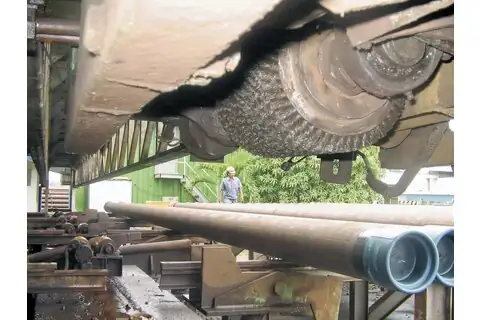

Aggressive brush. Excellent for cleaning the external diameter of pipes.

Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD TOOLS special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire is temperature-resistant up to 600°F.

Advantages

Optimal ratio of aggressiveness and flexibility.
Durable.
Long service life through use of PFERD TOOLS special wire.

Recommendations for use

Please observe the recommended rotational speeds.

Workpiece materials: Cast iron; Cast steel; Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 370 HV (< 38 HRC)

Applications: Cleaning; Deburring; Derusting; Descaling; Paint stripping; Removing oxide layers; Root seam processing; Work on fillet welds; Work on weld seams

Compatible power tools: Automated centers
