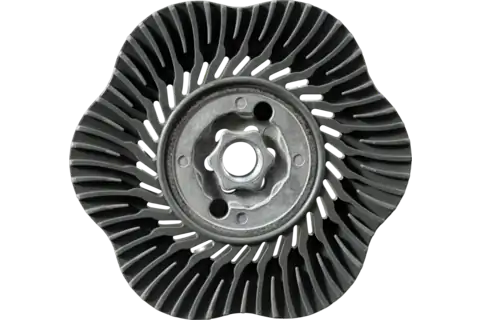

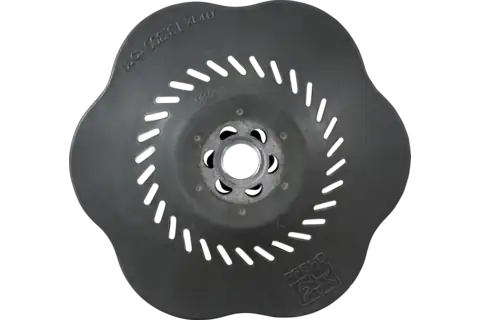

COMBICLICK backing pad soft dia. 115/125 mm thread 5/8-11UNC for angle grinders 115 and 125

Technical information

Item number Global part number: 44890163
Dia. external: 4-1/2 - 5 Inch
Dia. thread: 5/8-11
EDP no.: 69469
Max. RPM: 13300 RPM
PFERD TOOLS type: CC-S-GT 115-125 5/8-11
Suitable for: Angle grinders 4-1/2" / 5", spindle 5/8-11"
Suitable for diameter: 4 1/2 and 5
Version: soft
Packaging unit: 1 piece

Description

This backing pad allows COMBICLICK® products to be used on commercially available angle grinders.

The COMBICLICK® system consists of a specially developed backing pad and a rugged mounting system at the back of the disc. The backing pad allows COMBICLICK® discs to be used on most available angle grinders. The special geometry of the cooling slots ensures high airflow, which considerably reduces the thermal load on the abrasive material and the workpiece. The quick-mounting system, rugged fixture, secure attachment of the disc and optimized cooling system help to provide up to 30% lower workpiece temperature, up to 25% increased stock removal, up to 30% longer disc life and improved utilization of the abrasive.

Advantages

The geometry of the cooling slots significantly reduces the thermal load.
High productivity due to minimized disc change times.
Innovative quick-mounting system guarantees convenient handling with fast disc changes.

Recommendations for use

CC-H-GT backing pads are mainly used to work on stainless steel (INOX). They have a very high edge strength, which enables a higher contact pressure.

Safety notes

The maximum permitted peripheral speed is 15,800 SFPM.
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Compatible power tools: Angle grinder; Cordless angle grinder

PFERD TOOLS VALUE

PFERD TOOLS EFFICIENCY

recommends COMBICLICK® for long, fatigue-free and resource-saving work in the shortest possible time. The patented quick-mounting system reduces disc changes and setup times.

PFERD TOOLS ERGONOMICS

recommends COMBICLICK® as an innovative solution to reduce vibration, noise and dust produced during use and to improve comfort when working.
