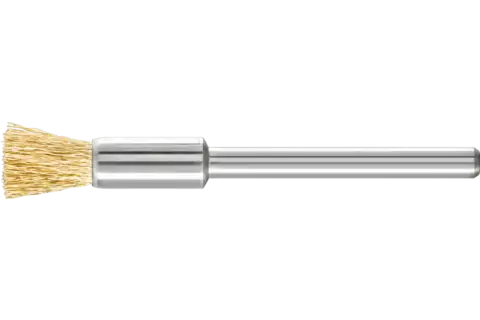

Miniature End Brush 1/4" Dia. .005 Brass Wire 1/8" Stem

Technical information

Item number Global part number: 79183267
Dia. cup: 1/4 Inch
Dia. external: 1/4 Inch
Dia. filament material: .005 Inch
Dia. shank: 1/8 Inch
EDP no.: 83267
Filament material: Brass wire (MES)
Max. RPM: 25000 RPM
Mounting system: Shank
Overall length: 1-3/4 Inch
RPM, optimum: 3.000 - 10.000 RPM
Trim length: 7/16 Inch
Packaging unit: 36 pieces

Description

Designed for light brushing such as deburring, cleaning and polishing.

PFERD TOOLS offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders.

Brass wire filament brushes are designed for applications like surface finishing on copper or brass workpieces. Compared to steel wire, brass wire is softer and more flexible. For all brushes with brass wire, PFERD TOOLS uses wire quality CuZn37.

Brass wire is temperature-resistant up to 350°F.

Advantages

Maximum precision and efficiency on delicate workpieces.
Optimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.
Low-sparking.
Creates fine surfaces.

Recommendations for use

Please observe the recommended rotational speeds.

Safety notes

When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

Workpiece materials: Brass; Copper; Other non-ferrous metals; Stainless steel (INOX); Zinc

Applications: Cleaning; Deburring; Removing oxide layers

Compatible power tools: Flexible shaft drive; Straight grinder
