End brushes crimped miniature brushes, shank-mounted

Miniature End Brush 1/4" Dia. Stiff Bristle 1/8" Stem

EDP:
83279

Login / Register
Choose options
Dia. external
Dia. filament material
Dia. shank
Filament material
Technical information

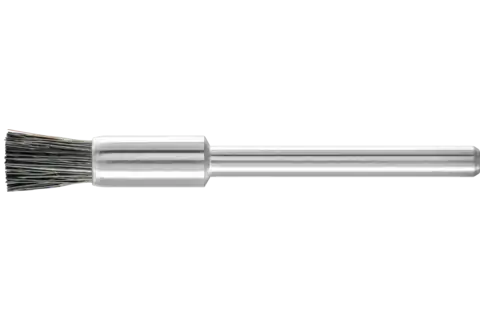

Miniature End Brush 1/4" Dia. Stiff Bristle 1/8" Stem

Item number Global part number
79183279
Dia. cup
1/4 Inch
Dia. external
1/4 Inch
Dia. filament material
- Inch
Dia. shank
1/8 Inch
EDP no.
83279
Filament material
Bristle, black
Max. RPM
25000 RPM
Mounting system
Shank
Overall length
1-3/4
RPM, optimum, from
5000 RPM
RPM, optimum, to
10000 RPM
Trim length
7/16 Inch
Packaging unit
36 pieces
Description

Designed for light brushing such as deburring, cleaning and polishing.

PFERD offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders.

Brushes with natural bristles (animal hair) are designed for light cleaning and dust removal, as well as for polishing (in combination with polishing pastes). These bristles are harder and less flexible than other natural bristle types.

Natural bristles are temperature-resistant up to 300°F.

Advantages
  • Maximum precision and efficiency on delicate workpieces.
  • Optimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.
Recommendations for use
  • Please observe the recommended rotational speeds.
  • Use brush with polishing paste to achieve the best polishing result.
Safety notes
  • When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Workpiece materials
Aluminum
Brass
Bronze
Cast iron
Cast steel
Cobalt-based alloys
Copper
Hard non-ferrous metal
High-temperature-resistant materials
Nickel-based alloys (e.g. Inconell and Hastelloy)
Nickel or titanium-based superalloys
Other non-ferrous metals
Soft titanium alloys (tensile strength 500 N/mm²)
Stainless steel (INOX)
Steel, cast steel
Steel materials with a hardness > 54 HRC
Steels up to 370 HV (< 38 HRC)
Titanium
Titanium alloys
Zinc
Applications
Cleaning
Polishing
Compatible power tools
Flexible shaft drive
Straight grinder
