End brushes crimped miniature brushes, shank-mounted

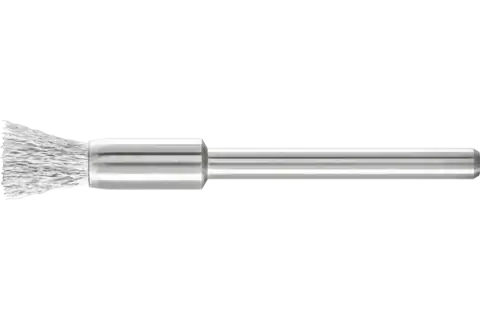

Miniature End Brush 1/4" Dia. .005 Carbon Steel 1/8" Stem

EDP:
83257

Login / Register
Choose options
Dia. external
Dia. filament material
Dia. shank
Filament material
Technical information
Miniature End Brush 1/4" Dia. .005 Carbon Steel 1/8" Stem

Item number Global part number
79183257
Dia. cup
1/4 Inch
Dia. external
1/4 Inch
Dia. filament material
.005 Inch
Dia. shank
1/8 Inch
EDP no.
83257
Filament material
Steel wire (ST)
Max. RPM
25000 RPM
Mounting system
Shank
Overall length
1-3/4
RPM, optimum, from
5000 RPM
RPM, optimum, to
15000 RPM
Trim length
7/16 Inch
Packaging unit
36 pieces
Description

Designed for light brushing such as deburring, cleaning and polishing.

PFERD offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders.

Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire is temperature-resistant up to 600°F.

Advantages
  • Maximum precision and efficiency on delicate workpieces.
  • Optimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.
  • Long service life through use of PFERD special wire.
  • Creates fine surfaces.
Recommendations for use
  • Please observe the recommended rotational speeds.
Safety notes
  • When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Workpiece materials
Cast iron
Cast steel
Elastomers
Steel, cast steel
Steel materials with a hardness > 54 HRC
Steels up to 370 HV (< 38 HRC)
Thermoplastics
Thermosetting plastics
Wood
Applications
Cleaning
Deburring
Derusting
Paint stripping
Removing oxide layers
Roughening
Compatible power tools
Flexible shaft drive
Straight grinder
