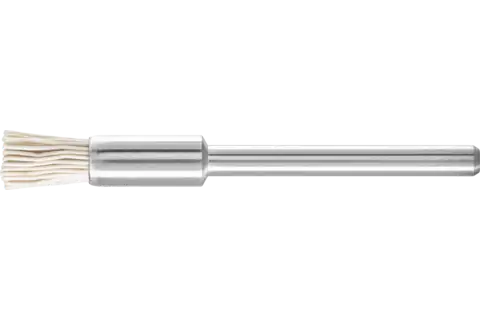

Miniature end brush PBU dia. 5 mm shank dia. 3.18 mm aluminium oxide filament dia. 0.30 grit 600

Technical information

Miniature end brush PBU dia. 5 mm shank dia. 3.18 mm aluminium oxide filament dia. 0.30 grit 600

Item number Global part number: 79183270
Dia. cup: 1/4 Inch
Dia. external: 3/16 Inch
Dia. filament material: .012 Inch
Dia. shank: 1/8 Inch
EDP no.: 83270
Filament material: Aluminum oxide (AO)
Grit size: 600
Max. RPM: 6000 RPM
Mounting system: Shank
Overall length: 1-3/4 Inch
RPM, optimum: 1.200 - 5.000 RPM
Trim length: 5/16 Inch
Packaging unit: 36 pieces

Description

Designed for light brushing such as deburring, cleaning and polishing.

PFERD TOOLS offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders.

Brushes with aluminum oxide (AO) are less sharp-edged and aggressive than those with SiC. These brushes are designed for polishing and smoothing finishes on soft metals.

Plastic filaments are temperature-resistant up to 410°F.

Advantages

Maximum precision and efficiency on delicate workpieces.
Optimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.
Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.

Recommendations for use

Please observe the recommended rotational speeds.
Use coolant for applications where large amounts of heat are produced.

Safety notes

When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

Workpiece materials: Aluminum; Bronze; Cast iron; Cast steel; Cobalt-based alloys; Other non-ferrous metals; Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 370 HV (< 38 HRC)

Applications: Cleaning; Deburring

Compatible power tools: Flexible shaft drive; Straight grinder

Downloads

End brushes crimped miniature brushes, shank-mounted

Miniature end brush PBU dia. 5 mm shank dia. 3.18 mm aluminium oxide filament dia. 0.30 grit 600
