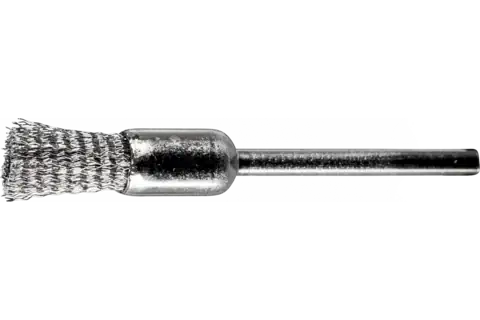

Miniature End Brush 5/16" Dia. .005 Stainless Steel 1/8" Stem

Technical information

Item number Global part number: 79183263
Dia. cup: 5/16 Inch
Dia. external: 5/16 Inch
Dia. filament material: .005 Inch
Dia. shank: 1/8 Inch
EDP no.: 83263
Filament material: Stainless steel wire (INOX)
Max. RPM: 25000 RPM
Mounting system: Shank
Overall length: 1-3/4 Inch
RPM, optimum: 4.500 - 12.500 RPM
Trim length: 1/2 Inch
Packaging unit: 36 pieces

Description

Designed for light brushing such as deburring, cleaning and polishing.

PFERD TOOLS offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders.

In order to fulfill the requirements for brushing stainless steel (INOX), PFERD TOOLS produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD TOOLS brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316. The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.

Stainless steel wire (INOX) is temperature-resistant up to 850 °F.

Advantages

Maximum precision and efficiency on delicate workpieces.
Optimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.
Very corrosion-resistant.
Creates fine surfaces.

Recommendations for use

Please observe the recommended rotational speeds.

Safety notes

When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

Workpiece materials: Aluminum; Bronze; Cobalt-based alloys; Hard non-ferrous metal; High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Nickel or titanium-based superalloys; Other non-ferrous metals; Soft titanium alloys (tensile strength 500 N/mm²); Stainless steel (INOX); Titanium; Titanium alloys

Applications: Cleaning; Deburring; Derusting; Paint stripping; Removing heat discolouration; Removing oxide layers; Roughening

Compatible power tools: Flexible shaft drive; Straight grinder

Downloads

End brushes crimped miniature brushes, shank-mounted
