Technical information

Carbide Bur SA-3 Cylindrical Uncut End ALU Cut 3/8" x 3/4" x 1/4" Shank

Item number Global part number: 21724065
Cut: ALU
Dia. external: 3/8 Inch
Dia. shank: 1/4 Inch
EDP no.: 24065
Length, cut: 3/4 Inch
Overall length: 2-1/2 Inch
RPM, hard non-ferrous metals: 19.000 - 35.000 RPM
RPM, soft non-ferrous metals: 19.000 - 35.000 RPM
SCTI-No.: SA-3
Packaging unit: 1 piece

Description

PFERD TOOLS has developed the ALU cut specifically for stock removal on aluminum. This cut achieves a high stock removal rate.

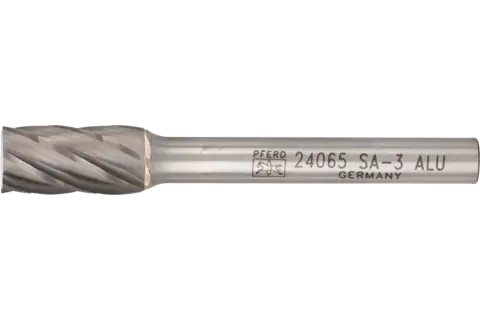

Cylindrical bur

Advantages

Extremely high stock removal rate.
Creates large chips.
Reduced material adhesion.
Long service life and smooth running.
Can be used with peripheral speeds of up to 3,600 SFPM.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.

Recommendations for use

Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
Observe the recommended rotational speed.
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.

Workpiece materials: Aluminum; Brass; Bronze; Copper; Fibre-reinforced thermosetting plastics (GRP, CRP); Hard aluminium alloys; Hard non-ferrous metal; Plastics; Soft aluminium alloys; Soft non-ferrous metal; Thermoplastics; Tough aluminium alloys; Zinc

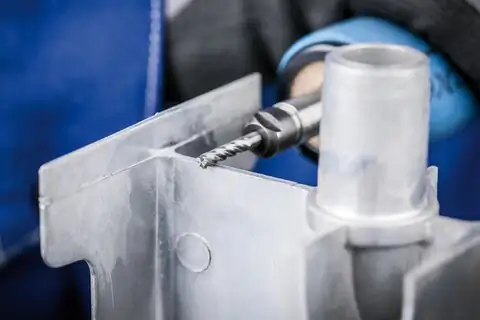

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work

Compatible power tools: Automated centers; Flexible shaft drive; Robot; Straight grinder; Tool machine
