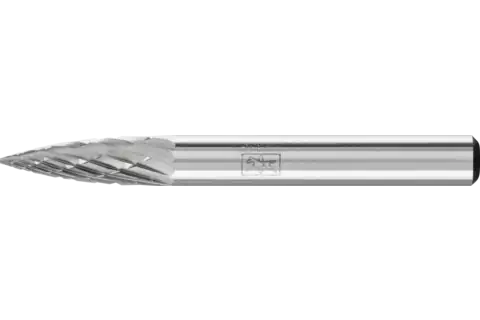

Carbide Bur SH-1 Flame Shape ALU Cut 1/4" x 5/8" x 1/4" Shank

Technical information

Description

PFERD TOOLS has developed the ALU cut specifically for stock removal on aluminum. This cut achieves a high stock removal rate.

Flame bur, shape H.

Advantages

Extremely high stock removal rate.
Creates large chips.
Reduced material adhesion.
Long service life and smooth running.
Can be used with peripheral speeds of up to 3,600 SFPM.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.

Recommendations for use

Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
Observe the recommended rotational speed.
The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.

Workpiece materials: Aluminum; Brass; Bronze; Copper; Fibre-reinforced thermosetting plastics (GRP, CRP); Hard aluminium alloys; Hard non-ferrous metal; Plastics; Soft aluminium alloys; Soft non-ferrous metal; Thermoplastics; Tough aluminium alloys; Zinc

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work

Compatible power tools: Flexible shaft drive; Robot; Stationary machines; Straight grinder; Tool machine

Downloads

High-performance tungsten carbide burs, ALU/Non-Ferrous cut, Flame bur – Shape H
