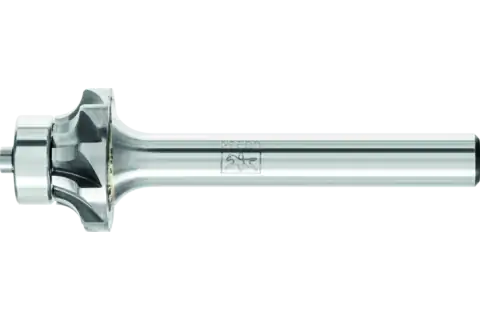

High-performance tungsten carbide burs, EDGE cut, Conical counterbore - 1/8 radius

Bearing Carbide Bur 1/8" Radius EDGE Cut 1/8" Radius 5/8" x 1/8", 1/4" Shank

EDP:: 25150

Bearing Carbide Bur 1/8" Radius EDGE Cut 1/8" Radius 5/8" x 1/8", 1/4" Shank 2

Technical data Change variant

Distributors-Search

Choose options

Dia. external

0,63 Inch

Length, construction

0,945 Inch

PFERD type

V 1612/6,35 EDGE R3.0 ECS V 1612/6,35 SP EDGE R3,0

Reset Filter

Technical information

Bearing Carbide Bur 1/8" Radius EDGE Cut 1/8" Radius 5/8" x 1/8", 1/4" Shank

Item number Global part number: 21725150
Cut: EDGE
Dia. ball bearing: 0,394 Inch
Dia. external: 0,63 Inch
Dia. shank: 1/4 Inch
EDP no.: 25150
Length, construction: 0,945 Inch
Length, cut: 0,118 Inch
Overall length: 2,047 Inch
PFERD type: V 1612/6,35 SP EDGE R3,0
RPM from, grey cast iron, white cast iron: 12000 RPM
RPM from, hard non-ferrous metals: 5000 RPM
RPM from, hardened, heat-treated steels over 370 HV (38 HRC): 12000 RPM
RPM from, high-temperature-resistant materials: 5000 RPM
RPM from, soft non-ferrous metals: 12000 RPM
RPM from, steels up to 370 HV (38 HRC): 12000 RPM
RPM to, grey cast iron, white cast iron: 18000 RPM
RPM to, hard non-ferrous metals: 7000 RPM
RPM to, hardened, heat-treated steels over 370 HV (38 HRC): 15000 RPM
RPM to, high-temperature-resistant materials: 9000 RPM
RPM to, soft non-ferrous metals: 18000 RPM
RPM to, steels up to 370 HV (38 HRC): 18000 RPM
Radius: 0,118 Inch
Packaging unit: 1 piece

Description

EDGE cut tungsten carbide burs have been specifically developed for precise work on edges. The special design allows the bur to run directly along edges without damaging the workpiece. Exact edges can be created in a single step - with either defined chamfers of 30° or 45°, or to a defined radius of 1/8". Rounding edges is a precautionary measure against corrosion according to: ISO 129443, ISO 85013, SOLAS XII/6.3 (Ref. T4/3.01 MSC.1/Circ.1198).

Concave radius bur for producing precise rounded edges. Cannot be re-sharpened. Designed for producing and finishing edges with an 1/8" outer radius."

Advantages

Special design allows for precise handling.
Safe and comfortable use.
Exact edge shapes can be created in a single step – with either defined chamfers of 30° or 45°, or to a defined radius of 1/8”.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.

Recommendations for use

Use the burs counterrotationally for quick stock removal. For a fine surface finish, run the bur back over the edges in the same direction of rotation.
If possible, use burs with the EDGE cut with the PFERD compressed-air straight grinder PG 3/210 with the matching guide sleeve EFH PG 3/210.
The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.

Workpiece materials: Annealed cast iron; Black annealed cast iron (GTS, GJMB); Bronze; Cast iron; Cast steel; Cobalt-based alloys; Copper; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hard non-ferrous metal; Steel; Steel, cast steel; Steels up to 220 HV (< 95 HB); Steels up to 370 HV (< 38 HRC); Titanium; Titanium alloys; Tool steels; White annealed cast iron (GTW, GJMW)

Applications: Chamfering; Deburring; Milling; Rounding; Working on edges; Working on edges (chamfering, rounding)

Compatible power tools: Flexible shaft drive; Robot; Stationary machines; Straight grinder; Tool machine

PFERDVALUE

PFERDEFFICIENCY

recommends EDGE cut burs for preventing fatigue, saving resources, and producing excellent work.
