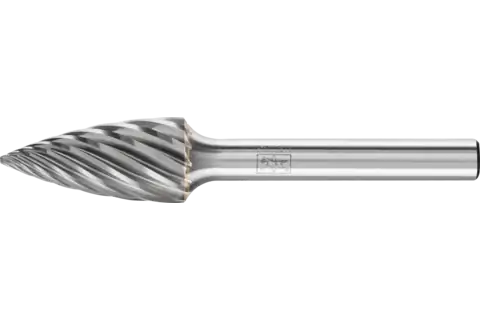

Carbide Bur SG-5 Pointed Tree Shape INOX Cut 1/2" x 1" x 1/4" Shank

Technical information

Item number Global part number: 21724817
Cut: INOX
Dia. external: 1/2 Inch
Dia. shank: 1/4 Inch
EDP no.: 24817
Length, cut: 1 Inch
Overall length: 2 3/4 Inch
RPM from, hard non-ferrous metals: 7000 RPM
RPM from, rust and acid-resistant steels: 12000 RPM
RPM from, soft non-ferrous metals: 7000 RPM
RPM to, hard non-ferrous metals: 12000 RPM
RPM to, rust and acid-resistant steels: 16000 RPM
RPM to, soft non-ferrous metals: 12000 RPM
SCTI-No.: SG-5
Packaging unit: 1 piece

Description

With the INOX cut, PFERD has developed innovative burs specifically for stainless steel (INOX). They achieve incredibly high stock removal on all austenitic steels, as well as rust- and acid-resistant steels. The INOX cut generates significantly less vibration in comparison to a double cut bur.

Tree bur with pointed end, shape G.

Advantages

Excellent stock removal rate and impressive service life due to innovative tooth design.
Creates high quality surface finish and the optimum material chip formation.
Workpiece is protected through much lower thermal load.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.

Recommendations for use

Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
Observe the recommended rotational speed.
The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.

Safety notes

Very high speeds can cause discoloration on the shank. This does not constitute a safety risk.

Workpiece materials: Hard non-ferrous metal; Stainless steel (INOX); Titanium; Titanium alloys

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Compatible power tools: Flexible shaft drive; Robot; Stationary machines; Straight grinder; Tool machine

PFERDVALUE

PFERDEFFICIENCY

recommends INOX cut burs for preventing fatigue, saving resources, and producing excellent work.

PFERDERGONOMICS

recommends INOX cut burs as an innovative solution for comfortable working and significantly reduced vibration and noise.

Downloads

High-performance tungsten carbide burs, INOX cut, Tree bur with pointed end - Shape G
