High-performance tungsten carbide burs, OMNI double cut, Cone bur with pointed end – Shape M

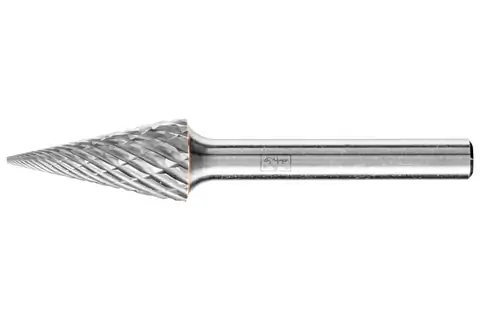

Carbide Bur SM-5 Pointed Cone Shape OMNI Double Cut 1/2" x 1/2" x 1/4" Shank

EDP:: 28016

Carbide Bur SM-5 Pointed Cone Shape OMNI Double Cut 1/2" x 1/2" x 1/4" Shank 2

Technical data Change variant

Distributors-Search

Choose options

Dia. external

1/2 Inch 1/4 Inch

Dia. shank

1/4 Inch

Length, cut

1 Inch

Overall length

1-15/16 Inch 2-3/4 Inch

Reset Filter

Technical information

Carbide Bur SM-5 Pointed Cone Shape OMNI Double Cut 1/2" x 1/2" x 1/4" Shank

Item number Global part number: 21728016
Angle: 28 °
Cut: OMNI
Dia. external: 1/2 Inch
Dia. shank: 1/4 Inch
EDP no.: 28016
Length, cut: 1 Inch
Overall length: 2-3/4 Inch
RPM, grey cast iron, white cast iron: 12.000 - 24.000 RPM
RPM, hard non-ferrous metals: 12.000 - 16.000 RPM
RPM, hardened, heat-treated steels over 370 HV (38 HRC): 7.000 - 12.000 RPM
RPM, rust and acid-resistant steels: 12.000 - 16.000 RPM
RPM, soft non-ferrous metals: 12.000 - 20.000 RPM
RPM, steels up to 370 HV (38 HRC): 12.000 - 20.000 RPM
SCTI-No.: SM-5
Packaging unit: 1 piece

Description

With the innovative OMNI cut, PFERD TOOLS has developed unique burs for versatile use on key materials such as steel and cast steel, stainless steel (INOX), non-ferrous metals and cast iron. The OMNI cut offers all the benefits of the tried-and-tested double cut, but its stock removal rate is up to 30% higher for steel. It enables comfortable working with reduced vibration and less noise. The OMNI cut also offers significant time savings and a high economic value.

Cone bur with pointed end, shape M.

Advantages

Significantly better stock removal rate than conventional double cut burs.
Saves time and money with very high stock removal rate on key materials.
Comfortable working due to reduced vibration and noise.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.

Recommendations for use

Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
Observe the recommended rotational speed.
The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.

Safety notes

Very high speeds can cause discoloration on the shank. This does not constitute a safety risk.

Workpiece materials: Annealed cast iron; Black annealed cast iron (GTS, GJMB); Brass; Bronze; Case-hardened steels; Cast iron; Cast steel; Copper; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hard aluminium alloys; Hardened, heat-treated steels over 370 HV (38 HRC); Hard non-ferrous metal; Soft non-ferrous metal; Stainless steel (INOX); Steel; Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels over 220 HV (> 95 HB); Steels up to 220 HV (< 95 HB); Steels up to 370 HV (< 38 HRC); Titanium; Titanium alloys; Tool steels; White annealed cast iron (GTW, GJMW); Zinc

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Compatible power tools: Automated centers; Flexible shaft drive; Robot; Straight grinder; Tool machine

PFERD TOOLS VALUE

PFERD TOOLS EFFICIENCY

recommends OMNI cut burs for preventing fatigue, saving resources, and producing excellent work.

PFERD TOOLS ERGONOMICS

recommends OMNI cut burs as an innovative solution for comfortable working and significantly reduced vibration and noise.
