Mounted flap wheels

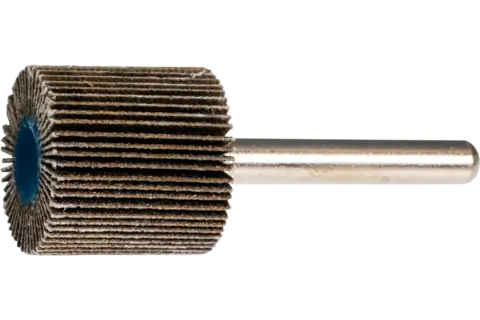

Mounted Flap Wheel, 1" x 1, 120 Grit, 1/4" Shank, Silicon carbide

EDP:
45487

Login / Register
Choose options
Abrasive
Dia. external
Dia. shank
Grit size
Width
Packaging unit
Technical information
Mounted Flap Wheel, 1" x 1, 120 Grit, 1/4" Shank, Silicon carbide

Item number Global part number
47801674
Abrasive
Silicon carbide SiC
Dia. external
1 Inch
Dia. shank
1/4 Inch
EDP number
45487
Grit size
120
Length, shank
1 1/2 Inch
RPM, max.
25000 RPM
RPM, optimum
15000 RPM
Width
1 Inch
Packaging unit
10 pieces
Description

With mounted flap wheels, coated abrasive flaps are arranged radially around the core in a fan-like structure. The flexible flaps perfectly adapt to surface contours. The abrasive grain is embedded in the sturdy, flexible cloth backing material with a resinoid bond.

In ISO 3919, mounted flap wheels are designated as "flap wheels with shaft."

For universal grinding work on components made from aluminium, copper, bronze, titanium and fibre-reinforced plastics. Excellent for use on titanium alloys. Ideal for the aeronautical industry, especially where SiC is the only approved abrasive, e.g. for use on engine components.

Advantages
  • Conforms to contours due to high flexibility.
  • Consistently high stock removal rate throughout the entire service life as new, aggressive abrasive is constantly exposed.
  • Can be used face-down very close to edges and in corners thanks to the flat, moulded-core design.
Recommendations for use
  • Flap wheel wear and the thermal load on the workpiece are reduced by decreasing the contact pressure and peripheral speed, and by adding grinding oil.
  • Stock removal rate should be increased by using a coarser grit, not by increasing the contact pressure. This avoids unnecessary flap wheel wear and prevents the thermal load of the workpiece.
  • Increasing the speed results in a slightly finer surface quality. An increase in contact pressure results in a slightly coarser surface. The softer the workpiece material, the coarser the resulting surface (when using the same grit size).
  • For the best performance, use with a recommended peripheral speed of 3,000-4,000 SFPM. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and tool wear.
  • Use the appropriate grinding oil for the material to significantly increase the service life and the abrasive performance of the discs.
Safety notes
  • For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
  • The contact pressure has to be reduced significantly when the optimum rotational speed is exceeded.
  • Ensure the clamping depth is at least 5/8" and the specified maximum rotational speed is not exceeded with unsupported shank lengths.
Workpiece materials
Aluminum
Bronze
Fibre-reinforced thermosetting plastics (GRP, CRP)
Stainless steel (INOX)
Stone
Thermoplastics
Titanium
Titanium alloys
Applications
Deburring
Leveling
Step-by-step fine grinding
Structuring (matt finishing, brush matting and satin finishing)
Surface work
Work on weld seams
Compatible power tools
Flexible shaft drive
Straight grinder
PFERDVALUE

PFERDERGONOMICS

recommends mounted flap wheels to reduce vibration and noise produced during use and to improve comfort when working.
