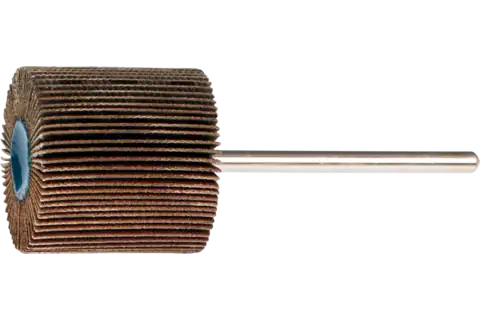

Mounted Flap Wheel, 1" x 1, 240 Grit, 1/8" Shank, Aluminum oxide

Technical information

Item number Global part number: 47801261
Abrasive: Aluminum oxide A
Dia. external: 1 Inch
Dia. shank: 1/8 Inch
EDP no.: 45182
Grit size: 240
Length, shank: 1 1/2 Inch
Max. RPM: 25400 RPM
RPM, optimum: 15000 RPM
Width: 1 Inch
Packaging unit: 10 pieces

Description

With mounted flap wheels, coated abrasive flaps are arranged radially around the core in a fan-like structure. The flexible flaps perfectly adapt to surface contours. The abrasive grain is embedded in the sturdy, flexible cloth backing material with a resinoid bond.

In ISO 3919, mounted flap wheels are designated as "flap wheels with shaft."

For universal applications from coarse to fine grinding.

Advantages

Conforms to contours due to high flexibility.
Consistently high stock removal rate throughout the entire service life as new, aggressive abrasive is constantly exposed.
Can be used face-down very close to edges and in corners due to the flat, molded-core design.

Recommendations for use

Flap wheel wear and the thermal load on the workpiece are reduced by decreasing the contact pressure and peripheral speed, and by adding grinding oil.
Stock removal rate should be increased by using a coarser grit, not by increasing the contact pressure. This avoids unnecessary flap wheel wear and prevents the thermal load of the workpiece.
Increasing the speed results in a slightly finer surface quality. An increase in contact pressure results in a slightly coarser surface. The softer the workpiece material, the coarser the resulting surface (when using the same grit size).
For the best performance, use with a recommended peripheral speed of 3,000-4,000 SFPM. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and tool wear.
Use the appropriate grinding oil for the material to significantly increase the service life and the abrasive performance of the discs.

Safety notes

For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
The contact pressure has to be reduced significantly when the optimum rotational speed is exceeded.
Ensure the clamping depth is at least 5/8" and the specified maximum rotational speed is not exceeded with unsupported shank lengths.

Workpiece materials: Aluminum; Annealed cast iron; Brass; Cast steel; Copper; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hardened, heat-treated steels over 370 HV (38 HRC); Stainless steel (INOX); Steel materials with a hardness > 54 HRC; Steels up to 370 HV (< 38 HRC)

Applications: Deburring; Leveling; Step-by-step fine grinding; Structuring (matt finishing, brush matting and satin finishing); Surface work; Work on weld seams

Compatible power tools: Flexible shaft drive; Straight grinder

PFERDVALUE

PFERDERGONOMICS

recommends mounted flap wheels to reduce vibration and noise produced during use and to improve comfort when working.
