Mounted points - cylindrical type STEEL

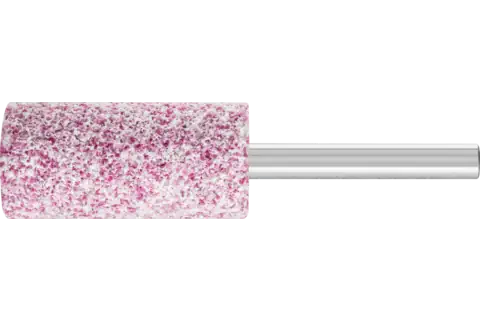

Vitrified Mounted Point, STEEL, 3/4"x2, 30 Grit, W208, Aluminum Oxide, 1/4"Shank

EDP:
34006

Login / Register
Choose options
Dia. external
Dia. shank
Grit size
Width
Technical information
Vitrified Mounted Point, STEEL, 3/4"x2, 30 Grit, W208, Aluminum Oxide, 1/4"Shank

Item number Global part number
39101648
Dia. external
3/4 Inch
Dia. shank
1/4 Inch
EDP no.
34006
Grit size
30
Length, shank
1-1/2 Inch
RPM max. 1 inch overhang
15370 RPM
RPM max. 1-2 inch overhang
18750 RPM
RPM optimum 1-2 inch overhang
18750 RPM
Shape
W 208
Width
2 Inch
Packaging unit
10 pieces
Description

The STEEL type is the most universal bond for machining steel and cast steel.

It is ideal for grinding high-speed steel (HSS) molded parts and weld dressing on steel constructions.

The cylindrical shape is ideal for grinding bores, radii and contours.

Advantages
  • Good grinding performance and stock removal rate in universal use on steel workpieces.
  • High stock removal rate results in increased productivity.
  • Designed for work on surfaces and edges.
Recommendations for use
  • STEEL mounted points perform best at a peripheral speed of 6,000-9,800 SFPM.
Safety notes
  • The maximum permitted rotational speed relates to an unsupported shank length of 1/2".
Workpiece materials
Cast steel
Steel
Applications
Deburring
Finishing
Grinding out
Grouting
Leveling
Surface work
Working on edges (chamfering, rounding)
Work on weld seams
Compatible power tools
Flexible shaft drive
Straight grinder
