Mounted points - Series A INOX

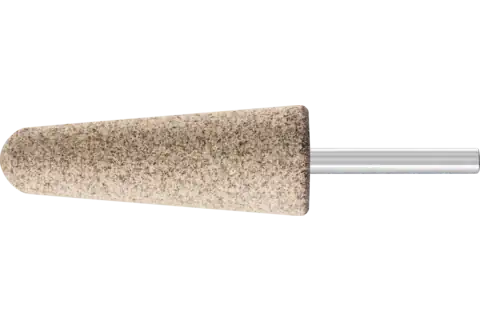

Resin Mounted Point, INOX, 1" x 2-3/4, 30 Grit, A3, Aluminum Oxide, 1/4" Shank

EDP:
35104

Login / Register
Choose options
Dia. external
Dia. shank
Grit size
Shape
Width
Technical information
Resin Mounted Point, INOX, 1" x 2-3/4, 30 Grit, A3, Aluminum Oxide, 1/4" Shank

Item number Global part number
39101659
Dia. external
1 Inch
Dia. shank
1/4 Inch
EDP no.
35104
Grit size
30
Length, shank
1-1/2 Inch
Max. RPM
18600 RPM
RPM max. 1 inch overhang
13080 RPM
RPM max. 1-2 inch overhang
16100 RPM
RPM optimum 1-2 inch overhang
16100 RPM
RPM, optimum
18600 RPM
Shape
A 3
Width
2-3/4 Inch
Packaging unit
10 pieces
Description

The INOX type is specifically designed for surface work on stainless steel (INOX) and for universal use on non-ferrous metals and bronze.

These products are used for rough grinding of stainless steel (INOX) castings and grinding of molded parts made of high temperature-resistant alloys.

Series A mounted points are generally used on larger, stainless steel components, such as in container construction. Due to the special shapes, it is possible to grind in a variety of contours.

Applications include grinding in hard-to-reach areas, machining bores and small holes, and smoothing surfaces.

Advantages
  • Ideal for use on temperature-sensitive materials due to cool-grinding properties.
  • Increased operator comfort due to low vibration grinding
Recommendations for use
  • INOX mounted points perform best at a peripheral speed of 6,900-9,800 SFPM.
Safety notes
  • The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
Workpiece materials
Bronze
Hard non-ferrous metal
Stainless steel (INOX)
Applications
Deburring
Finishing
Grinding out
Grouting
Leveling
Surface work
Working on edges (chamfering, rounding)
Work on weld seams
Compatible power tools
Flexible shaft drive
Straight grinder
