POLIFAN flap discs zirconia alumina Z SGP CURVE STEELOX ★★★★

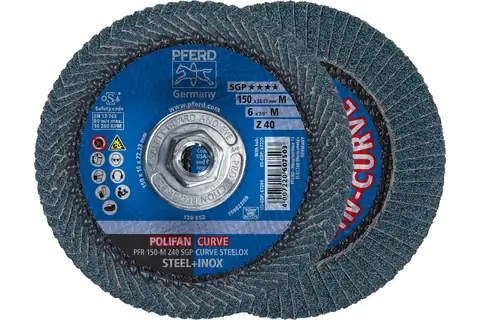

Flap Disc, 6" x 5/8-11, Z SGP CURVE STEELOX, 40 Grit, Medium Radius, Zirconia

EDP:
67220

Login / Register
Choose options
Dia. external
Fillet weld radius >
Mounting system
Size
Packaging unit
Technical information
Flap Disc, 6" x 5/8-11, Z SGP CURVE STEELOX, 40 Grit, Medium Radius, Zirconia

Item number Global part number
69901701
Abrasive
Zirconia, Z
Dia. external
6 Inch
Dia. hole
5/8-11 Inch
Dia. thread
5/8-11
EDP no.
67220
Fillet weld radius >
3/16 Inch
Grit size
40
Max. RPM
10200 RPM
Mounting system
Thread
Shape
PFR CURVE
Size
M (3/16")
Packaging unit
10 pieces
Description

Special Line SGP includes products engineered for specific tasks that offer the user key advantages over conventional products. This quality line also includes products that, due to their particularly high performance, offer ultimate economic efficiency.

The patented flap disc POLIFAN-CURVE has been specially developed for work on fillet welds. It is the only flap disc in the world featuring a radial configuration of flaps allowing for grinding with all surfaces of the disc.

PFERD’s POLIFAN CURVE is patented in many countries across the globe.

High-performance flap disc for maximum stock removal on steel and stainless steel (INOX).

Advantages
  • High productivity due to high stock removal rate.
  • Excellent service life when working on fillet welds.
  • Precise and optimum grinding of the fillet weld geometry.
Recommendations for use
  • After the abrasive on the outer edge of the disc has worn down, the disc can continue to be used as a conventional flap disc.
Workpiece materials
Stainless steel (INOX)
Steel
Applications
Chamfering
Deburring
Work on fillet welds
Work on weld seams
Compatible power tools
Angle grinder
PFERDVALUE

PFERDEFFICIENCY

recommends POLIFAN-CURVE flap discs to achieve perfect results as quickly as possible.

PFERDERGONOMICS

recommends POLIFAN-CURVE flap discs to sustainably reduce the vibration, noise and dust produced during use and to perceptibly improve comfort when working.
Downloads
