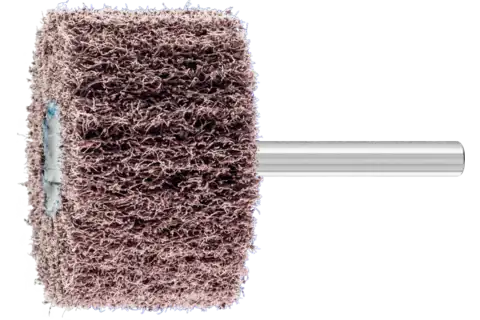

POLINOX® Mounted Flap Wheel, 2" x 1-1/4,100 Grit,Radial,1/4"Shank,Aluminum Oxide

Technical information

Item number Global part number: 47801121
Abrasive: Aluminum oxide A
Dia. external: 2 Inch
Dia. shank: 1/4 Inch
EDP no.: 46204
Grit size: 100
Length, shank: 1-1/2 Inch
Max. RPM: 12000 RPM
PFERD TOOLS type: PNL 5030/6,35 A 100
RPM, optimum: 6000 RPM
Width: 1 Inch
Packaging unit: 10 pieces

Description

POLINOX® mounted flap wheels are made of non-woven polyamide abrasive, into which abrasive grain is integrated. Non-woven abrasive flaps are arranged radially, and the wheels are durable due to the dense packing of the flaps. Ideal for surface work.

Advantages

Conforms to contours due to high flexibility.
Cool grinding and low thermal load on the workpiece.
The open structure and high flexibility of the non-woven material prevents loading.

Recommendations for use

For the best performance, use with a recommended peripheral speed of 2,000-4,000 SFPM. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and flap wheel/cross buff wear.

Safety notes

The maximum permitted peripheral speed is 6,300 SFPM.
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Workpiece materials: Aluminum; Brass; Bronze; Cast steel; Cobalt-based alloys; Copper; Fibre-reinforced thermosetting plastics (GRP, CRP); Hardened, heat-treated steels over 370 HV (38 HRC); Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel materials with a hardness > 54 HRC; Steels up to 370 HV (< 38 HRC); Thermoplastics; Titanium; Titanium alloys; Zinc

Applications: Cleaning; Deburring; Roughening; Step-by-step fine grinding; Structuring (matt finishing, brush matting and satin finishing); Surface work

Compatible power tools: Flexible shaft drive; Straight grinder

PFERD TOOLS VALUE

PFERD TOOLS ERGONOMICS

recommends POLINOX® mounted flap wheels to reduce vibration and noise produced during use and to improve comfort when working.
