Wheel brushes, knotted, pipeline

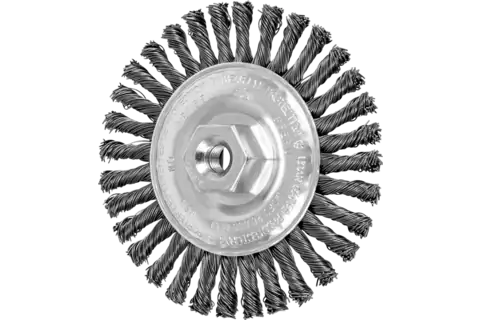

Stringer Bead Wheel Brush 4" Dia .020 Carbon Steel 3/8-24" Thread

EDP:
82188

Login / Register
Choose options
Dia. external
Dia. filament material
Dia. thread
Filament material
Mounting system
Number, knots
Packaging
Trim length
Technical information
Stringer Bead Wheel Brush 4" Dia .020 Carbon Steel 3/8-24" Thread

Item number Global part number
79182188
Dia. external
4 Inch
Dia. filament material
.020 Inch
Dia. thread
3/8-24
EDP no.
82188
Filament material
Steel wire (ST)
Max. RPM
20000 RPM
Mounting system
Thread
Number, knots
32
Packaging
Industrial packaging
RPM, optimum, from
10000 RPM
RPM, optimum, to
15000 RPM
Trim length
3/4 Inch
Width
3/16 Inch
Packaging unit
10 pieces
Description

Aggressive and robust brush that is able to withstand high mechanical loads. Ideal for heavy-duty brushing in pipeline and container construction.

Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire is temperature-resistant up to 600°F.

Advantages
  • Aggressive brushing action due to tightly-twisted wire knots.
  • Extra-slim design allows access to hard-to-reach areas such as root weld seams.
  • Long service life through use of PFERD special wire.
Recommendations for use
  • Please observe the recommended rotational speeds.
  • For best performance, use on powerful angle grinders.
Workpiece materials
Cast iron
Cast steel
Steel, cast steel
Steel materials with a hardness > 54 HRC
Steels up to 370 HV (< 38 HRC)
Applications
Cleaning
Deburring
Derusting
Descaling
Paint stripping
Removing oxide layers
Root seam processing
Work on fillet welds
Work on weld seams
Compatible power tools
Angle grinder
Downloads
